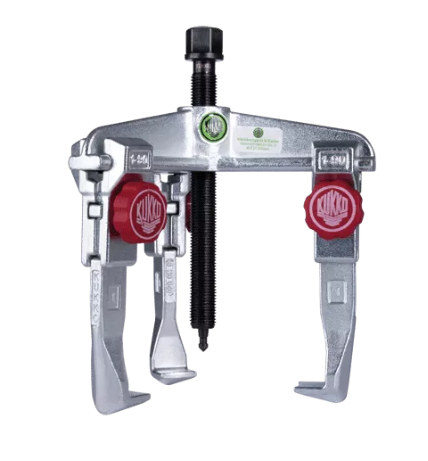

Kukko Standard Universal 3-Jaw Puller

Gedore  |  Part # 30-1+
$270.00

This 3-Jaw Puller features a standard pulling hook with quick adjusting capability and parallel hooks for use in any position, even with a full load. The cross-beam allows for infinitely variable adjustment of the pulling hooks and the spindle tip has a unique 2-sided design for optimal adjustment to the shaft. The mechanical pressure screw and milled thread with a special coating ensure secure and even distribution of the load when removing parts.

  • Strong design, high performance and long service life
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrome VI)
  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions
  • Turning the pulling hooks enables them to be used both internally and externally
  • Suitable for pulling asymmetric workpieces
  • Spindle head band prevents the wrench from slipping off
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system
  • Quality made in Germany
Save Product
Gedore

Kukko Standard Universal 3-Jaw Puller

From $251.50

This 3-Jaw Puller features a standard pulling hook with quick adjusting capability and parallel hooks for use in any position, even with a full load. The cross-beam allows for infinitely variable adjustment of the pulling hooks and the spindle tip has a unique 2-sided design for optimal adjustment to the shaft. The mechanical pressure screw and milled thread with a special coating ensure secure and even distribution of the load when removing parts.

Opening/Reach/Tonnage

  • 3.50" / 3.875" / 6.5 Ton
  • 5.125" / 3.875" / 6.5 Ton
  • 6.375" / 5.875" / 7.5 Ton
  • 7.875" / 5.875" / 7.5 Ton
  • 9.875" / 7.875" / 11 Ton
  • 14.75" / 7.875" / 16 Ton
