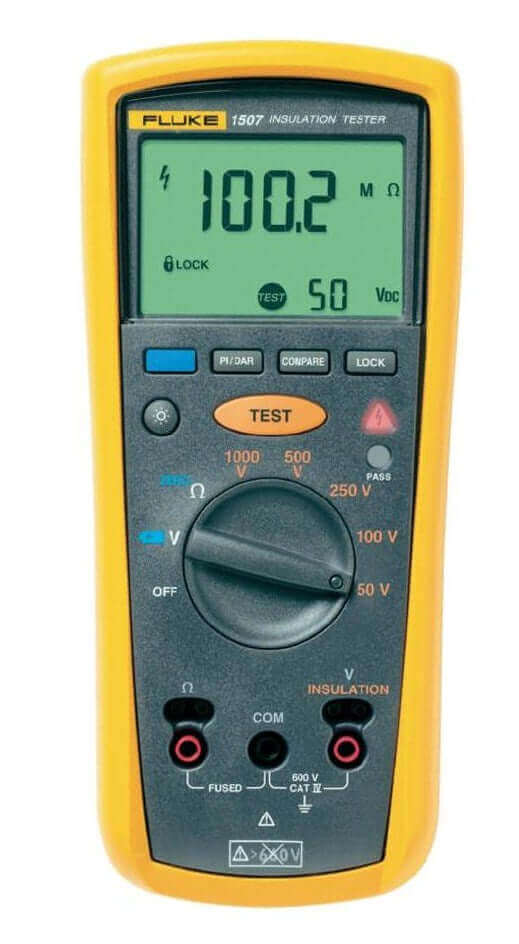

Fluke 1507 Insulation Resistance Tester

The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.

• Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio
• Make repetitive tests simple and easy with the 1507’s Compare (Pass/Fail) function
• Repetitive or hard-to-reach testing is easy with the remote test probe
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• Auto-discharge of capacitive voltage for added user protection
• AC/DC voltage: 0.1 V to 600 V
• 200 mA Continuity
• Resistance: 0.01 O to 20.00 kO
• Save battery power with auto power off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
• Remote probe, test leads, probes and alligator clips included with each tester
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
• One year warranty

Click here for specifications
