Enerpac Hydraulic Secure-Grip Flange Spreader

Enerpac  |  Part # SG13TESTD
$8,984.00

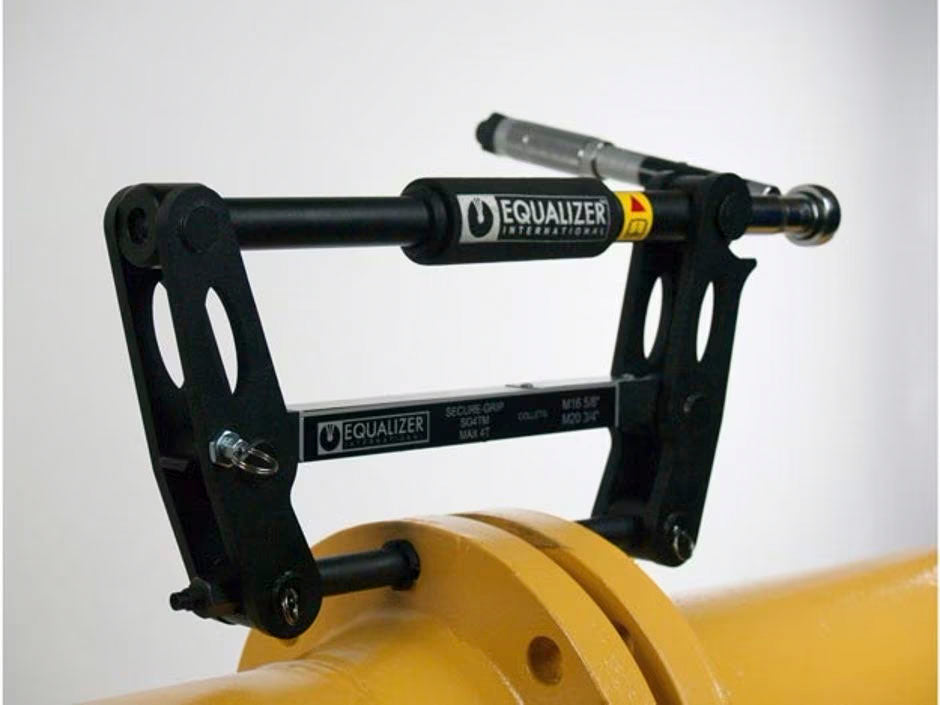

Introducing the SG4TM secure grip bolt-hole spreader - a versatile tool that can spread flanges of all types with bolt-holes. This compact tool kit includes additional short collet holders, enabling the spreader to remove spacers, wafers, and butterfly valves with ease.
  • Maximum Operating Pressure: 10,000 psi
  • The secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes. The collet holders are supplied with adjustable drive cones which can be adjusted outward from their central position allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve. This mid-end, hydraulic model offers up to 14.6 imperial tons (130 kN) of spreading force.

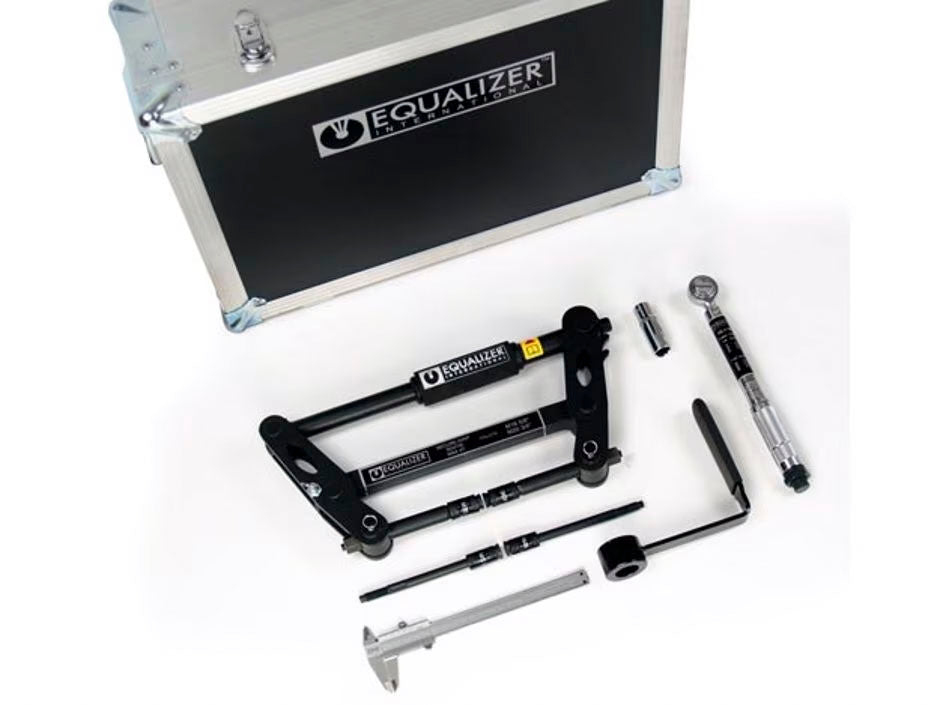

  • Set Includes:

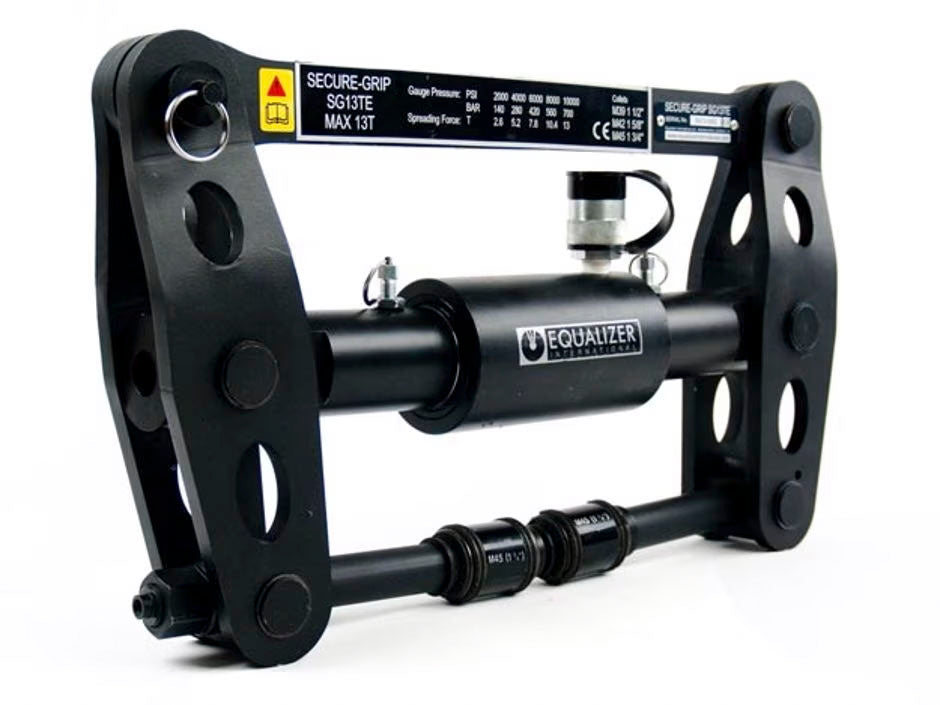

  • 1 x SG13TE Tool c/w Hydraulic Cylinder
    1 x 10,000 psi (700 bar) HP 550S Sealed Hand Pump with Gauge
    1 x 10,000 psi (700 bar) Hydraulic Hose, 78.7" (2 m)
    1 x 6" (150 mm) Vernier Calliper
    1 x 1/2" Square Drive Flexible Handle
    1 x 1 1/8" (30 mm) Socket
    1 x Safety Block
    2 x M39 (1 1/2") Collets
    2 x M42 (1 5/8") Collets
    2 x M45 (1 3/4") Collets
    1 x Instruction Manual
    1 x Carry Case with protective foam inserts
  • Short Collet Holder Sets (SCH) are available which can offer improved range of application.
  • Collet Holders can also be dismantled and inserted through bolt-holes from opposite side.
    Save Product
    Enerpac

    Enerpac Hydraulic Secure-Grip Flange Spreader

    From $8,984.00
    Introducing the SG4TM secure grip bolt-hole spreader - a versatile tool that can spread flanges of all types with bolt-holes. This compact tool kit includes additional short collet holders, enabling the spreader to remove spacers, wafers, and butterfly valves with ease.
    • Maximum Operating Pressure: 10,000 psi
    • The secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes. The collet holders are supplied with adjustable drive cones which can be adjusted outward from their central position allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve. This mid-end, hydraulic model offers up to 14.6 imperial tons (130 kN) of spreading force.
    • Set Includes:
    • 1 x SG13TE Tool c/w Hydraulic Cylinder
      1 x 10,000 psi (700 bar) HP 550S Sealed Hand Pump with Gauge
      1 x 10,000 psi (700 bar) Hydraulic Hose, 78.7" (2 m)
      1 x 6" (150 mm) Vernier Calliper
      1 x 1/2" Square Drive Flexible Handle
      1 x 1 1/8" (30 mm) Socket
      1 x Safety Block
      2 x M39 (1 1/2") Collets
      2 x M42 (1 5/8") Collets
      2 x M45 (1 3/4") Collets
      1 x Instruction Manual
      1 x Carry Case with protective foam inserts
    • Short Collet Holder Sets (SCH) are available which can offer improved range of application.
    • Collet Holders can also be dismantled and inserted through bolt-holes from opposite side.

      Size

      • 14.6 Ton, 4.53" Max Spread, 1.50-1.93" Hole Diameter

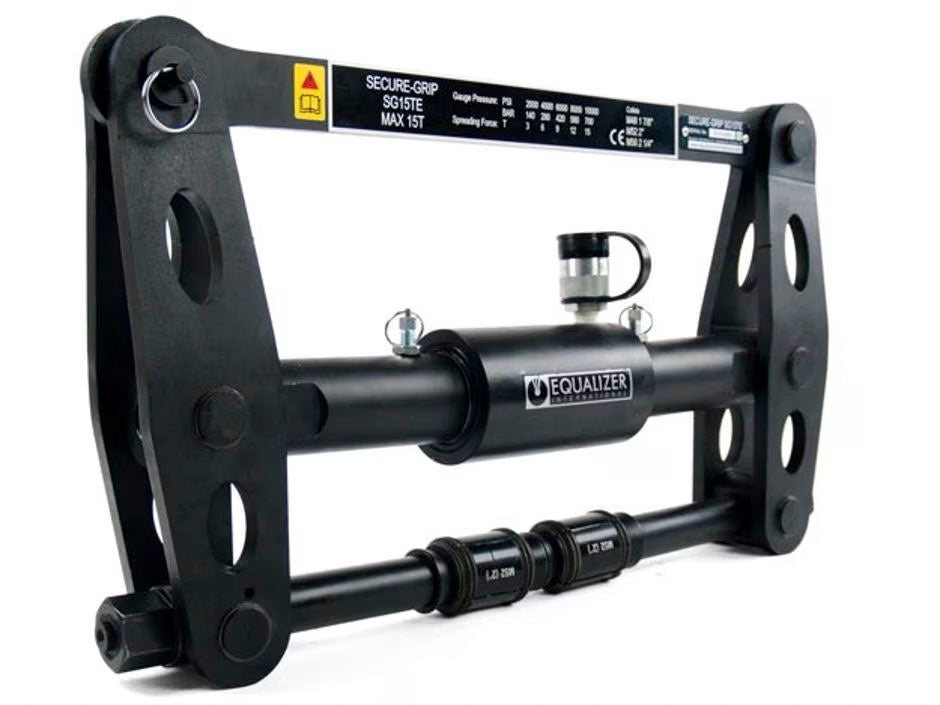

      • 16.9 Ton, 3.94" Max Spread, 1.87-2.44" Hole Diameter
