Enerpac 14 Ton Hydraulic Industrial Spreader

Enerpac  |  Part # FSH14
$4,817.00

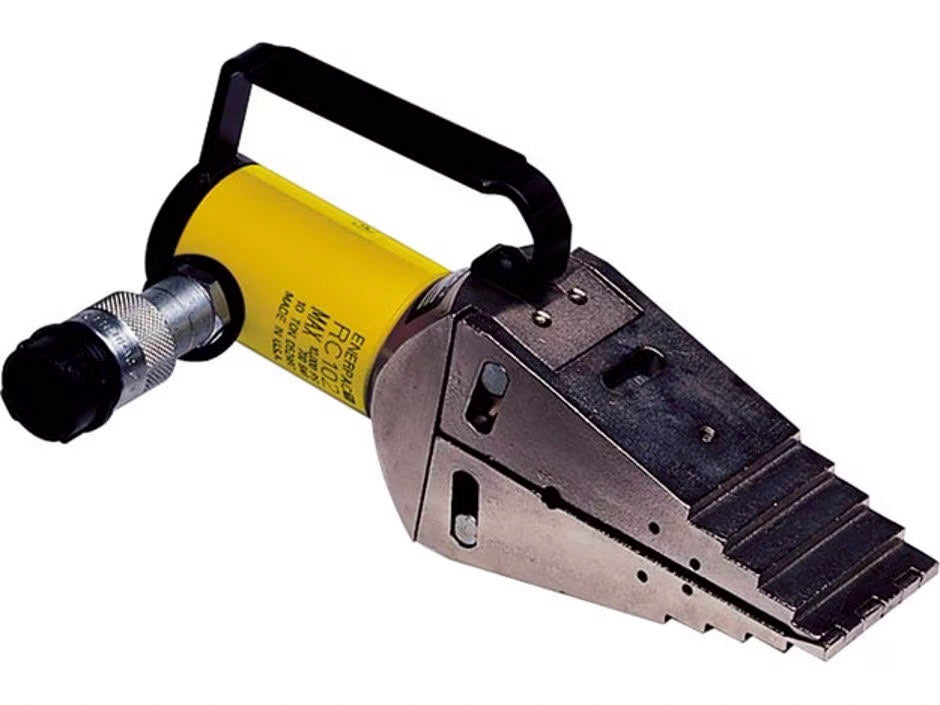

The FSH14 Flange Spreader with its integral cylinder makes it easy to apply up to 14 tons of force (118 kN). It uses hydraulic force to separate the jaws - unlike mechanical equivalents (such as the FSM8) which rely on a ratchet mechanism.

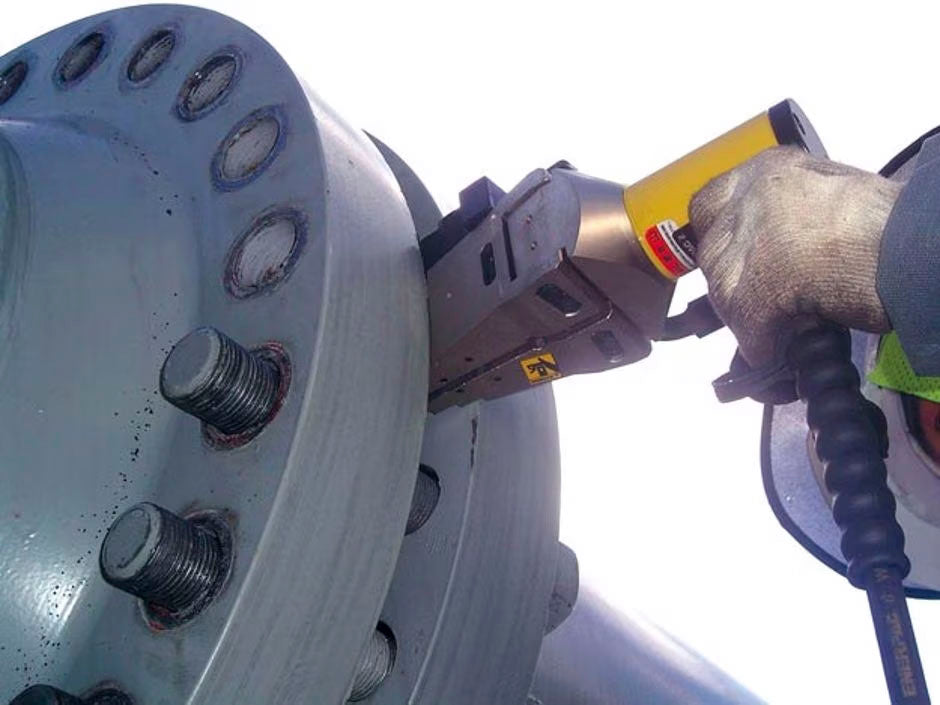

The FSH14 tool fits into very small clearance gaps of 0.24 inch (6 mm). It uses a friction-free, smooth, parallel wedge movement to prevent flange damage and spreading arm failure.

  • Maximum Spread: 3.16"
  • Maximum Spreading Force: 14 ton
  • Tip Clearance: 0.24"
  • Oil Capacity: 4.76 in³
  • Weight: 19.84 lbs
  • Integrated hydraulic cylinder: uses hydraulic force to open the jaws
  • Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
  • Unique interlocking wedge design: no first step bending and risk of slipping out of joint
  • Requires very small access gap of only 0.24 inches (6mm)
  • Stepped spreader arm design: each step can spread under full load
  • Few moving parts means durability and low maintenance
  • Safety block SB1 included
