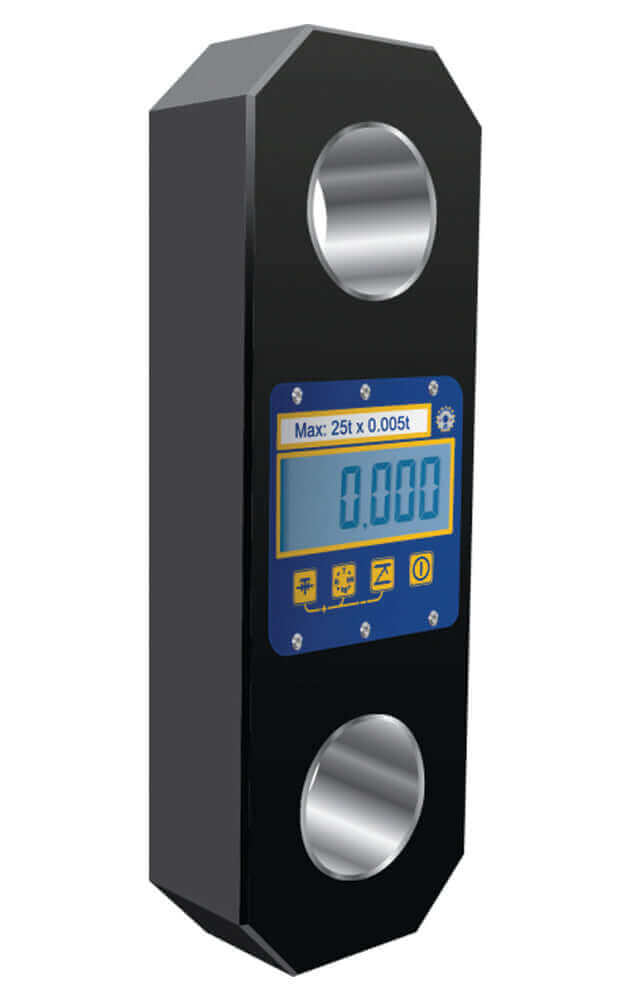

Crosby® Straightpoint Loadlink Plus Load Cell

Digital Dynamometer known worldwide as the original electronic force measurement device to feature an integral display, the Loadlink plus has been in production since 1979.

The advanced microprocessor based electronics provide the Loadlink plus with high speed read rates (500/sec), extreme resistance to industrial level noise and unprecedented stability. This high stability gives the Loadlink plus over 5,000 divisions and the highest standard resolution of any digital dynamometer on the market today. Constructed of high-grade aircraft quality aluminium, Straightpoint’s advanced internal design structure allows the product to once again top the charts with an unmatched weight to strength ratio.

• Large 1" display
• High accuracy of +/- 0.3% of applied load
• Selectable Units - t, lbs, kg or kN
• High Resolution, 5000 divisions as standard
• Peak Hold – 100Hz peak force analysis
• Push button tare
• Preset tare
• Compact Size, lightweight
• 90db Audible set point alarm
• Design validated by F.E.A.
• Supplied with proof testing certificate, operator manual, carry/storage case
