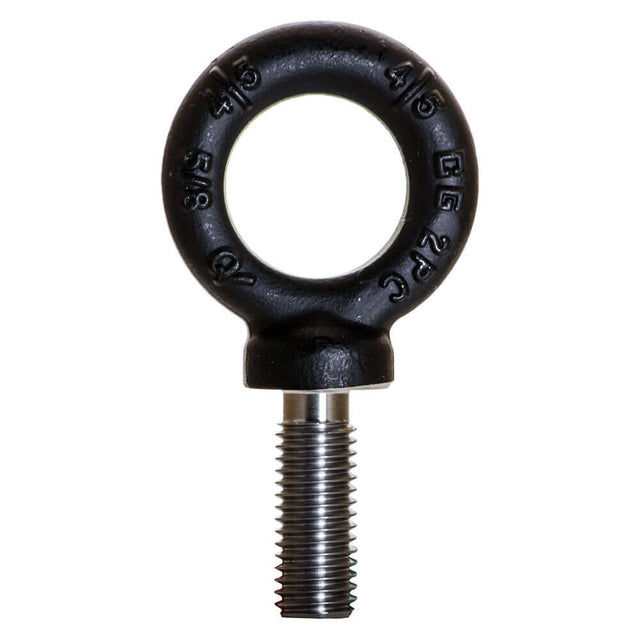

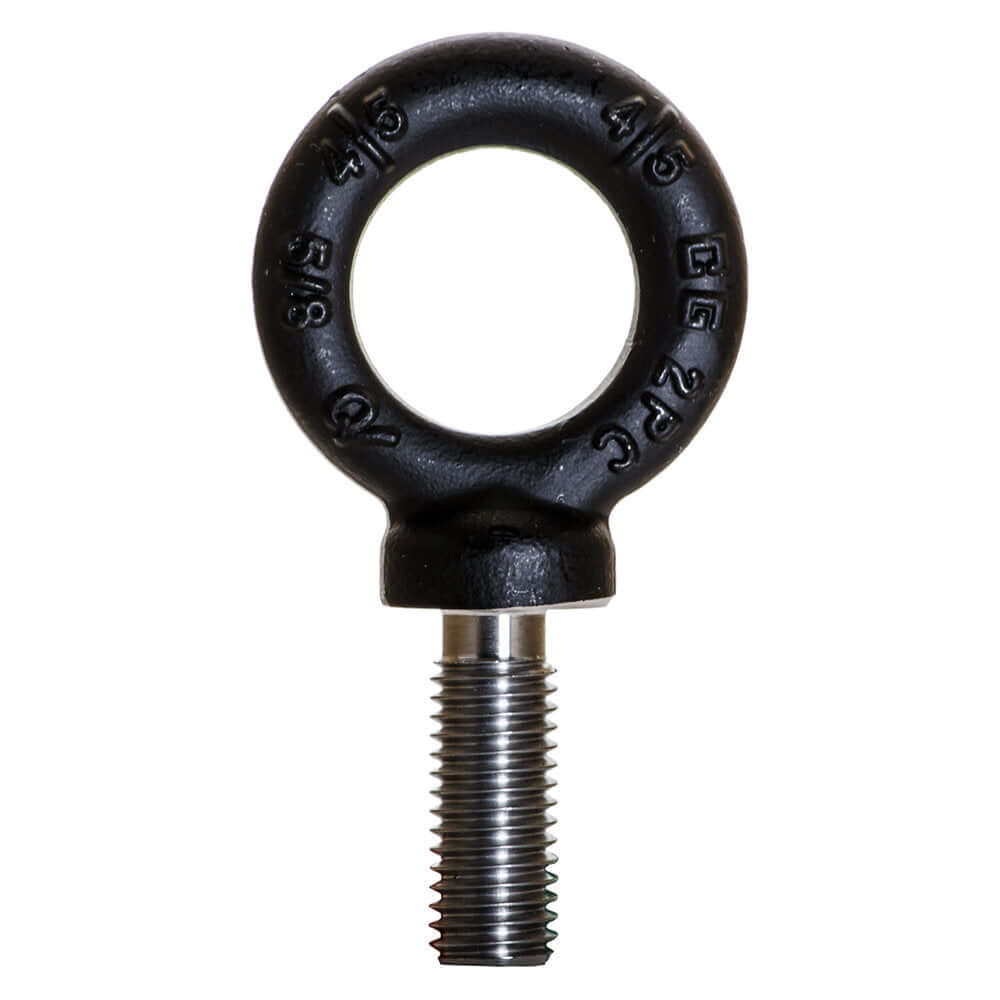

Crosby® S-279 Fractional Machinery Eyebolts

Crosby® S-279 Fractional Machinery Eyebolts

Crosby  |  Part # 9900191
$13.68

These eyebolts are designed and tested to meet the tough safety requirements of ASME B30.26, allowing for a safe and secure connection.

  • Forged steel, quenched and tempered
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
  • Meets or exceeds all requirements of ASME B30.26
  • Recommended for in-line pull
  • Threaded UNC
Save Product
Crosby® S-279 Fractional Machinery Eyebolts
Crosby

Crosby® S-279 Fractional Machinery Eyebolts

From $13.68

These eyebolts are designed and tested to meet the tough safety requirements of ASME B30.26, allowing for a safe and secure connection.

Thread Size

  • 5/16" x 1-1/8" --- 1200 lb WLL
  • 3/8" x 1-1/4" --- 1550 lb WLL
  • 1/2" x 1-1/2" --- 2600 lb WLL
  • 5/8" x 1-3/4" --- 5200 lb WLL
  • 3/4" x 2" --- 7200 lb WLL
  • 7/8" x 2-1/4" --- 10600 lb WLL
  • 1" x 2-1/2" --- 13300 lb WLL
